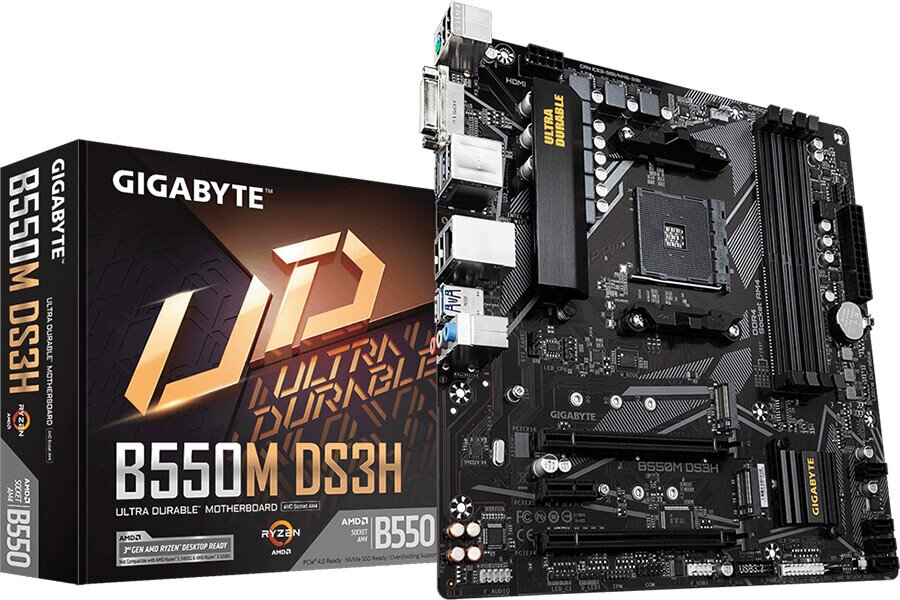

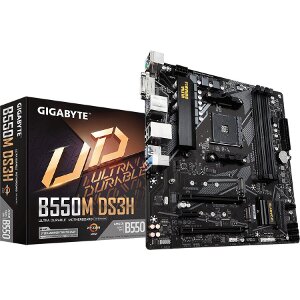

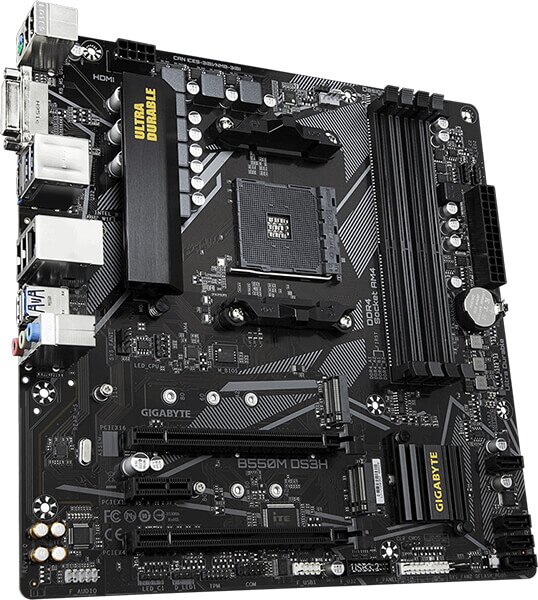

ΜΗΤΡΙΚΗ GIGABYTE B550M DS3H RETAIL

Micro ATX Form Factor (24.4cm x 24.4cm)

AM4

3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors

AMD B550

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110, 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset

1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button

Realtek ALC887 codec, Realtek GbE LAN chip (1000 Mbit/100 Mbit), Intel Wi-Fi 6 AX200, Bluetooth 5

Θύρες επέκτασης: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset, 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset

Microsoft Windows 10 64-bit

3 χρόνια
