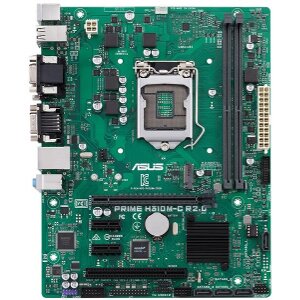

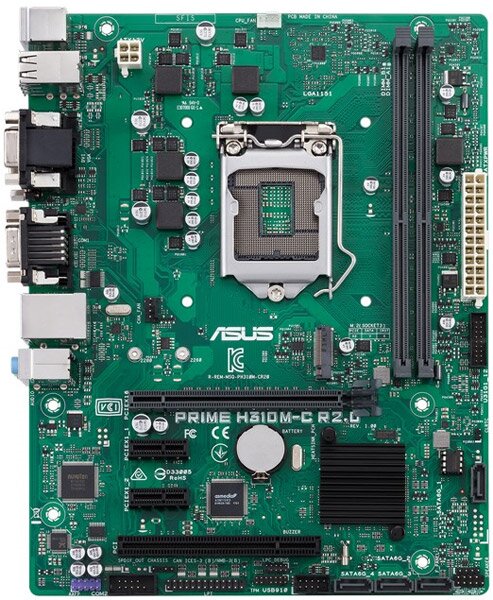

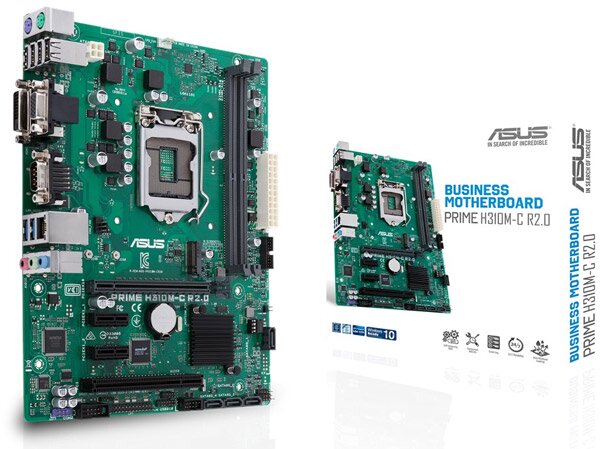

ASUS PRIME H310M-C R2.0 RETAIL

uATX Form Factor (24.4 cm x 19.3 cm)

Socket 1151

8th and 9th Intel Core i7, Core i5, Core i3, Pentium, Celeron.

Intel H310

2 x DIMM, Μεγ. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Μέσω τοποθέτησης κάρτας γραφικών PCI-Express ή μέσω επεξεργαστή που διαθέτει ενσωματωμένα γραφικά. Ο επεξεργαστής χρησιμοποιεί τις ενσωματωμένες θύρες της μητρικής και υποστηρίζει τις παρακάτω αναλύσεις: DVI-D with max. resolution 1920 x 1200 @ 60 Hz,Supports RGB with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider,Supports up to 2 displays simultaneously

1 x M.2 Socket,4 x SATA 6Gb/s

1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x LAN (RJ45) port(s),2 x USB 3.1 Gen 1 ,4 x USB 2.0,3 x Audio jack(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode),1 x LPT header,2 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4 -pin),1 x Chassis Fan connector(s) (1 x 4 -pin),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Chassis Intrusion connector(s),1 x Clear CMOS jumper(s),1 x 14-1 pin TPM connector,1 x LPC Debug header,1 x Speaker connector

Realtek ALC887 8-Channel High Definition Audio CODEC, Realtek RTL8111H,1 x Gigabit LAN Controller(s)

Θύρες επέκτασης: 1 x PCIe 3.0/2.0 x16,2 x PCIe 2.0 x1,1 x PCI

Windows 10 64-bit

3 χρόνια
