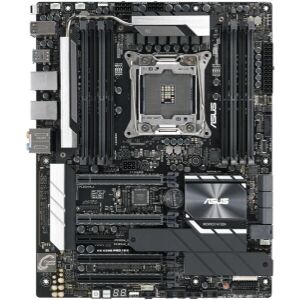

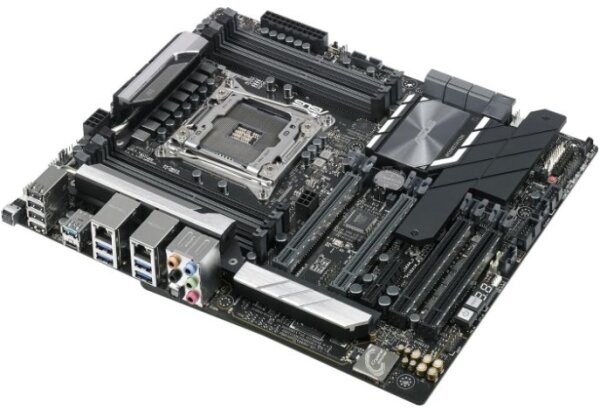

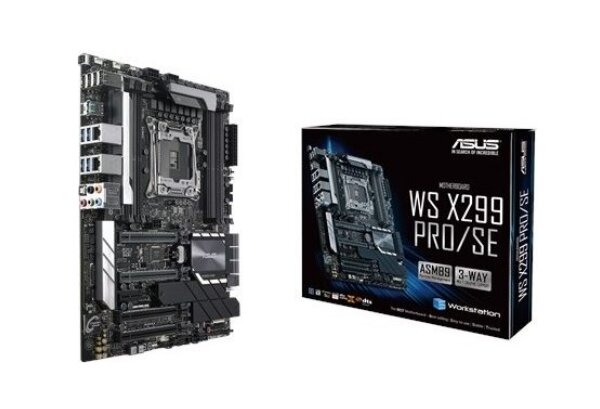

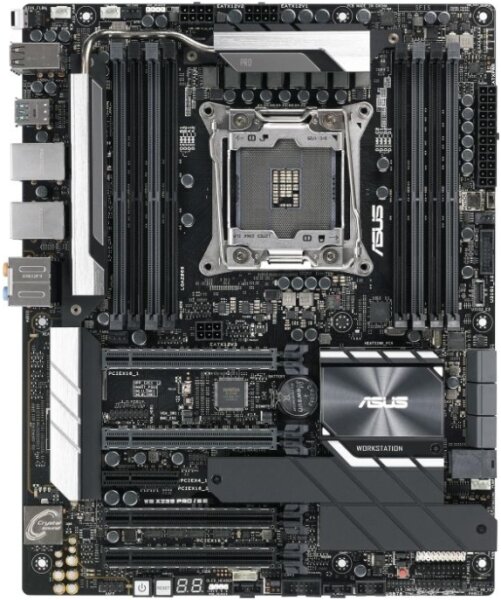

ΜΗΤΡΙΚΗ ASUS WS X299 PRO/SE RETAIL

Intel Socket 2066 Core X-Series.

Intel X299.

Με επεργαστή Intel Core X-series (6-core και άνω): 8x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory. Με επεργαστή Intel Core X-series (4-core): 4x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory.

Multi-GPU: Υποστηρίζει τεχνολογίες NVIDIA 3-Way SLI και AMD 3-Way CrossFireX. Θέσεις επέκτασης: (44-Lane CPU) - 2x PCIe 3.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x8 mode), 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x4 (x4 mode). (28-Lane CPU) - 1x PCIe 3.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x8 mode), 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x4 (x4 mode). (16-Lane CPU) - 1x PCIe 3.0 x16 (x8 mode), 2x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x4 (x4 mode).

6x SATA 6Gb/s ports, 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), 1x U.2 connector.

2x LAN (RJ45) ports, 2x USB 3.1 Gen 2 ()Type-A + USB Type-CTM, 4 USB 3.1 Gen 1, 4x USB 2.0, 1x Optical S/PDIF out, 1x USB BIOS Flashback Button, 1x 8-channel Audio I/O.

1 x Aura Addressable Strip Header, 1 x U.2 port, 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1(up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports, 1 x USB 2.0 connector supports additional 2 USB 2.0 ports, 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x COM port connector, 6 x SATA 6Gb/s connector, 1 x VROC_HW_Key, 1 x Thunderbolt header, 1 x 24-pin EATX Power connector, 1 x 6-pin ATX Power connector, 2 x 8-pin ATX 12V Power connectors, 1 x EZ XMP switch, 1 x VGA connector, 1 x AUX panel header, 1 x 5-pin EXT_FAN(Extension Fan) connector. 1 x Power-on button, 1 x Reset button, 1 x Clear CMOS button, 1 x Front fan, 1 x Rear fan, 1 x U.2 Connector (support U.2 NVMe device), 1 x AIO PUMP Header, 1 x Thermal sensor connector, 1 x CPU_OV jumper, 1 x MemOK! Button, 1 x PANEL2, 1 x PUMP Fan connector, 1 x PANEL1.

Ενσωματωμένη κάρτα δυκτίου: Intel I210-AT, 2 x Gigabit LAN Controllers. Ενσωματωμένη κάρτα ήχου: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3.

3 χρόνια.
