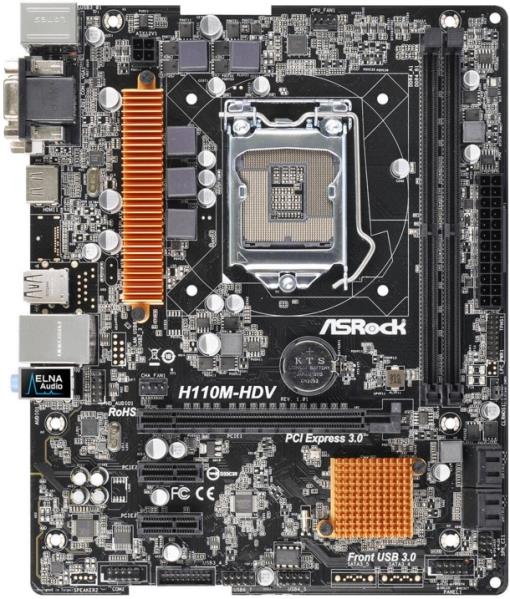

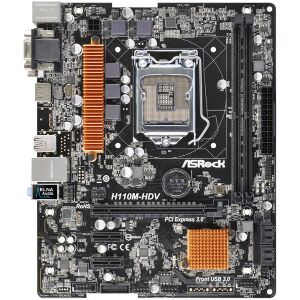

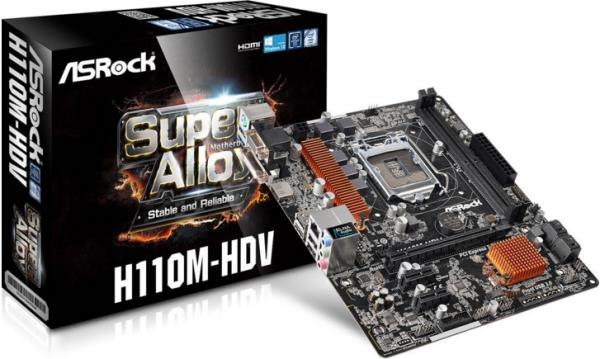

ASROCK H110M-HDV R3.0 RETAIL

Micro ATX.

Υποστηρίζει 6ης/7ης γενιάς Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151), Supports Intel Turbo Boost 2.0 Technology.

Intel H110.

Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 32GB, Supports Intel Extreme Memory Profile (XMP) 2.0.

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCI Express 2.0 x1 Slots.

4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug.

1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone.

1 x TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)), 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).

Supports Intel HD Graphics Built-in Visuals. ????: 7.1 CH HD Audio (Realtek ALC887 Audio Codec). LAN: Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN.

2 Χρόνια.
