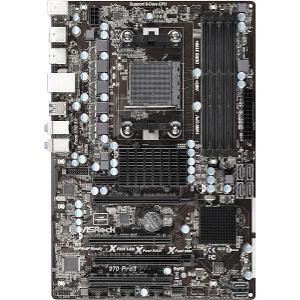

ASROCK 970 PRO3 R2.0 RETAIL

Support for Socket AM3+ processors, - Support for Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors, Supports 8-Core CPU, Supports UCC feature (Unlock CPU Core), 4 + 1 Power Phase Design, Supports CPU up to 140W, Supports AMD's Cool 'n' Quiet Technology, FSB 2400 MHz (4.8 GT/s), Supports Untied Overclocking Technology, Supports Hyper-Transport 3.0 (HT 3.0) Technology

AMD 970

Dual Channel DDR3 memory technology, 4 x DDR3 DIMM slots, Supports DDR3 2100+(OC)/1866*(OC)/1800*(OC)/1600*(OC)/1333/1066/800 non-ECC, un-buffered memory, Max. capacity of system memory: 64GB.

6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions

1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 6 x Ready-to-Use USB 2.0 Ports, 2 x Ready-to-Use USB 3.0 Ports, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone.

6 x SATA3 6.0 Gb/s connectors, 1 x IR header, 1 x CIR header, 1 x COM port header, 1 x HDMI_SPDIF header, 1 x Power LED header, 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin),2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin), 1 x Power Fan connector (3-pin), 24 pin ATX power connector, 8 pin 12V power connector, Front panel audio connector, 3 x USB 2.0 headers (support 6 USB 2.0 ports), 1 x USB 3.0 header (supports 2 USB 3.0 ports)

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111E, Supports Wake-On-LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az.

2 χρόνια
