Τοποθέτηση
ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm).
Υποστηριζόμενοι Επεξεργαστές
AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors.
Υποδοχές Μνήμης
4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/ 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory, Dual Channel μνήμες (σε συστήματα Windows XP και Vista 32-bit η διαθέσιμη μνήμη ενδέχεται να είναι μικρότερη των 4GB λόγω περιορισμού, σε Windows XP και Vista 64-bit δεν υπάρχει κάποια δέσμευση).
Υποστήριξη Καρτών Γραφικών
3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8).
Υποστήριξη Δίσκων
8x SATA 6Gb/s ports, 1 x eSATA 6Gb/s port.

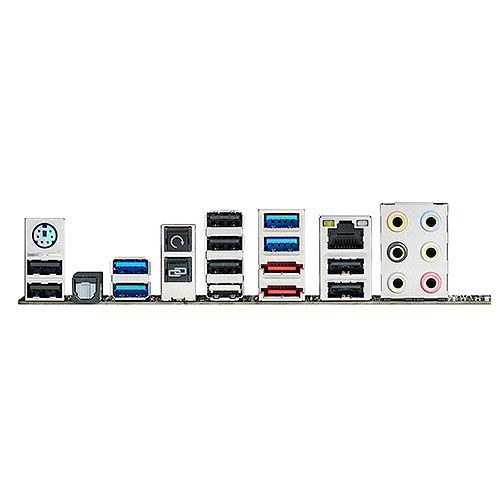

Θύρες Επικοινωνίας (Εξωτερικές)
1 x PS/2 keyboard/mouse combo port, 1 x eSATA 6Gb/s, 1 x LAN (RJ45) port, 4 x USB 3.0, 8 x USB 2.0 (one port can be switched to ROG Connect), 1 x Optical S/PDIF out, 6 x Audio jacks, 1 x Clear CMOS button
Εσωτερικές Συνδέσεις
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 8 x SATA 6Gb/s connector(s), 2 x CPU Fan connector(s), 3 x Chassis Fan connector(s), 3 x Optional Fan connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 8 x ProbeIt Measurement Points, 3 x Thermal sensor connector(s), 1 x En/Dis-able Clr CMOS header(s), 1 x EZ Plug connector(s) (4-pin Molex power connector), 1 x Power-on button(s), 1 x Reset button(s), 1 x CPU Level Up button(s), 1 x ROG Connect switch(es), 1 x Go Button.
On-Board Συσκευές
Ενσωματωμένη κάρτα δικτύου: Intel, 1 x Gigabit LAN Controller.Ενσωματωμένη κάρτα ήχου: SupremeFX X-Fi 2 built-in 8-Channel High Definition Audio CODEC.
