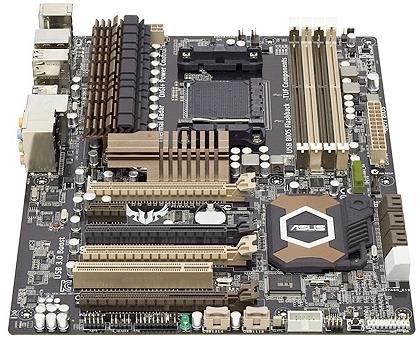

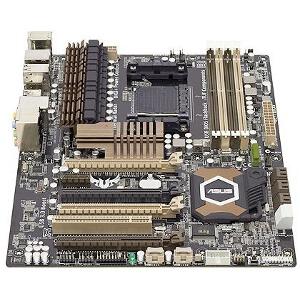

ASUS SABERTOOTH 990FX R2.0

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Socket AM3+.

AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors.

AMD 990FX/SB950.

4 x DDR3 1866/1600/1333/1066 MHz Non-ECC max 32GB memory, Un-buffered Memory, Dual Channel μνήμες (σε συστήματα Windows XP και Vista 32-bit η διαθέσιμη μνήμη ενδέχεται να είναι μικρότερη των 4GB λόγω περιορισμού, σε Windows XP και Vista 64-bit δεν υπάρχει κάποια δέσμευση).

3 x PCIe 2.0 x16 (dual x16 or x16, x8, x8).

6 x SATA 6Gb/s ports, 2 x SATA 6Gb/s ports, 2 x eSATA 6Gb/s ports

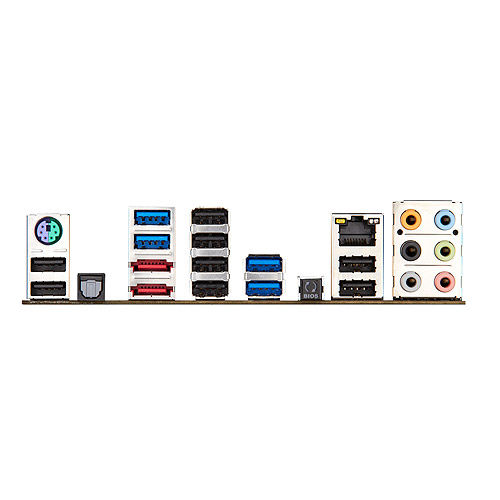

1 x PS/2 keyboard/mouse combo port(s), 2 x eSATA 6Gb/s, 1 x LAN (RJ45) port(s), 4 x USB 3.0 (blue), 8 x USB 2.0, 1 x Optical S/PDIF out, 6 x Audio jack(s), 1 x USB BIOS Flashback Button.

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green), 2 x USB 2.0 connector(s) support(s) additional 4, USB 2.0 port(s), 1 x TPM connector(s), 1 x COM port(s) connector(s), 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 4 x Chassis Fan connector(s) (4 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel connector(s), 1 x System panel(s) (Q-Connector), 1 x DirectKey Button(s), 1 x DRCT header(s), 1 x MemOK! button(s), 1 x Clear CMOS jumper(s)

Ενσωματωμένη κάρτα δικτύου: Realtek 8111F, 1 x Gigabit LAN Controller(s).Ενσωματωμένη κάρτα ήχου: Realtek ALC 892 8-Channel High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Feature:Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound, Blu-ray audio layer Content Protection, ASUS Noise Filter, Optical S/PDIF out port(s) at

3 έτη.
