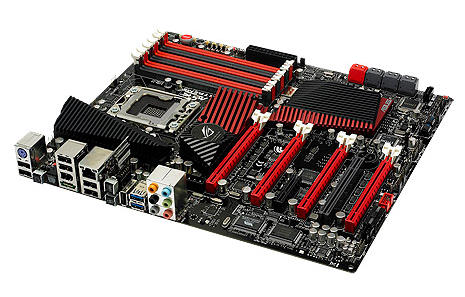

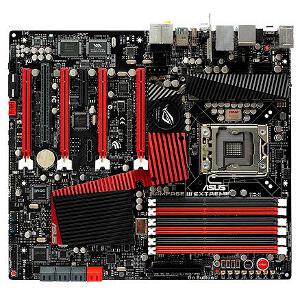

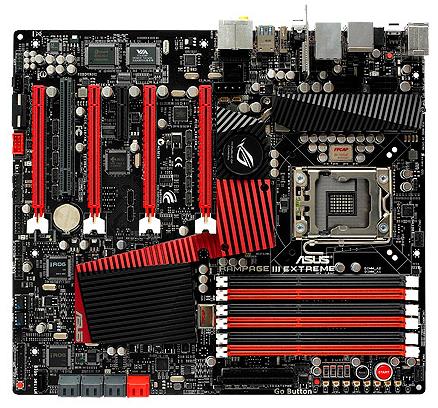

ASUS RAMPAGE III EXTREME

ATX Form Factor 30.5 cm x 26.9 cm

socket 1366

ntel Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 ProcessoΣυμβατοί επεξεργαστές.

Intel X58 / ICH10R

Up to 6400 MT/s

6 x DIMM, Max. 24 GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 Non-ECC,Un-buffered MemoryΣυμβατές μνήμες.

4 x PCIe 2.0 x16 , support x16; x16/x16; x16/x8/x8 and x8/x8/x8/x8 configurations
NVIDIA 3-Way SLI™ / ATI CrossFireX™ Technology
4 PCIe x16 slots ready for 4 single PCB graphic cards

6 xSATA 3.0 Gb/s ports (RAID 0,1,5,10 ), 1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go), 2 xSATA 6.0 Gb/s ports

2 x 1394a port(s) (1 port at back I/O, 1 port onboard), 2 x USB 3.0/2.0 ports (at back panel), 9 x USB 2.0/1.1 ports (2 ports at midboard; 6 ports at back panel, 1 reserved for ROG Connect)

1 x IEEE 1394a connector, 1 x S/PDIF Out connector, 8 x ProbeIt Measurement Points, 3 x Thermal sensor connectors, 1 x 24-pin ATX Power connector, 2 x 8-pin ATX 12V Power connectors, 1 x En/Dis-able Clr CMOS header, 1 x LN2 Mode Header, 1 x START (Power On) button, 1 x RESET button, 2 x EZ Plug connectors (4-pin Molex Power connectors),1 x OC Station header, 1 x RC Bluetooth header, 1 x Go Button, 1 x BIOS Switch button, 1 x ROG light connector, 1 x CD Audio in, 1 x Audio front panel, 1 x System panel connector, 1 x FAN1 Connector for optional fan-thermal module

Gigabit Intel LAN
8-Channel High Definition Audio CODEC
