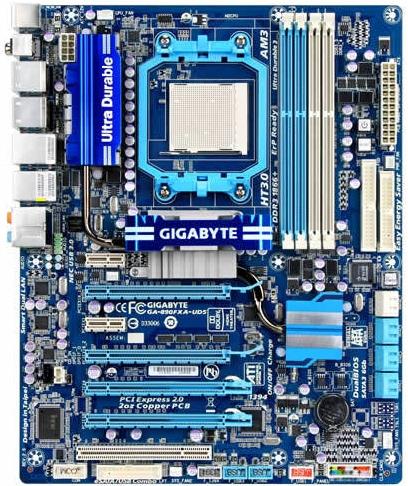

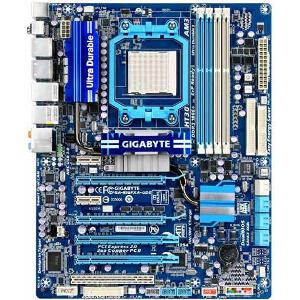

GIGABYTE GA-890FXA-UD5

ATX με διαστάσεις 30.5cm x 24.4cm.

Socket AM3.

AM3 processors: AMD Phenom II processor / AMD Athlon II processor. Συμβατοί επεξεργαστές

North Bridge: AMD 890FX, South Bridge: AMD SB850.

5200 MT/s.

4 x DDR3 1866(OC)/1333/1066 (dual channel, 240-pin) με δυνατότητα επέκτασης έως 16GB.

2 x PCI Express x16 slot (x16) (PCIEX16_1, PCIEX16_2), 1 x PCI Express x16 slot (x8) (PCIEX8) (το PCIEX8 slot μοιράζεται το ίδιο bandwidth με το PCIEX16_1 slot. Όταν τοποθετήσετε μια κάρτα στο PCIEX8 slot, το PCIEX16_1 slot θα λειτουργήσει στα x8 mode), 1 x PCI Express x16 slots (x4) (PCIEX4). Υποστήριξη 2-way/ 3-way ATI CrossFireX.

South Chipset: 6 x SATA 6Gb/s connectors (RAID 0, 1, 5, 10, JBOD). GIGABYTE SATA2 chip: 1 x ATA 33/66/100/133 (δυνατότητα σύνδεσης 2 συσκευών IDE), 2 x SATA 3Gb/s connectors (RAID 0, 1, JBOD). JMicron JMB362 chip: 2 x eSATA 3Gb/s connectors (eSATA/USB Comobo) (RAID 0, 1, JBOD).

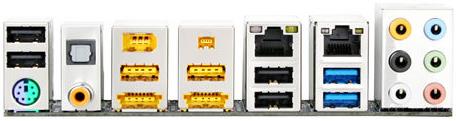

1 x PS/2 keyboard/ mouse port, 1 x optical S/PDIF Out connector, 1 x coaxial S/PDIF out connector, 2 x IEEE 1394a port, 6 x USB 2.0/1.1 ports, 2 x USB 3.0/2.0 ports, 2 x eSATA/USB Combo connectors, 2 x RJ-45 port, 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone).

2 x PCI Express x1 slot, 1 x PCI slot, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x floppy disk drive connector, 1 x CPU fan header, 2 x system fan header, 1 x North Bridge fan header, 1 x power fan header, 1 x front panel header, 1 x front panel audio header, 1 x CD In connector, 1 x S/PDIF In header, 1 x S/PDIF Out header, 1 x IEEE 1394a header, 3 x USB 2.0/1.1 headers, 1 x serial port header, 1 x parallel port header, 1 x clearing CMOS jumper, 1 x clearing CMOS button, 1 x power button, 1 x reset button.

Ενσωματωμένη κάρτα δικτύου: 2 x Realtek 8111D Gigabit Ethernet (10/100/1000 Mbit). Ενσωματωμένη κάρτα ήχου: Realtek ALC889 codec 2/4/5.1/7.1-channel. Ενσωματωμένος firewire controller: T.I. TSB43AB23 chip.

3 χρόνια.
