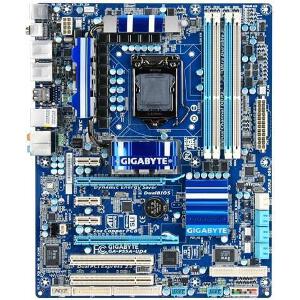

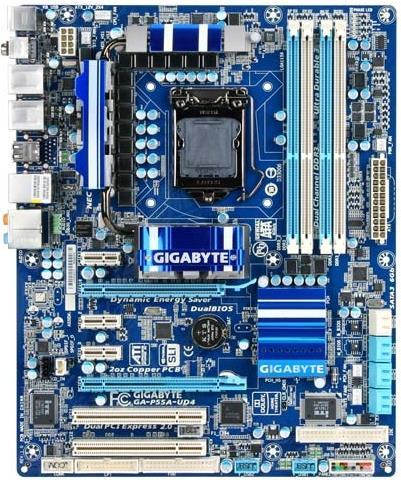

GIGABYTE GA-P55A-UD4

ATX με διαστάσεις 30.5 x 24.4cm.

Socket 1156.

Intel Core i7 series processor/Intel Core i5 series

Intel P55 Express Chipset

4 x DDR3 2200/1600/1333/1066/800 MHz με δυνατότητα επέκτασης έως 16GB (Dual channel, 240-pin). Υποστήριξη Extreme Memory Profile (XMP) memory modules. (σε συστήματα Windows XP 32-bit η διαθέσιμη μνήμη ενδέχεται να είναι μικρότερη των 4GB λόγω περιορισμού του chipset).

1 x PCI Express x16 slots, 1 x PCI Express x16 slot (x8). Υποστήριξη ATI CrossFireX, NVIDIA SLI technology.

Intel P55 Express Chipset: 6 x SATA 3 Gb/s connectors (RAID 0, 1, 5, 10).

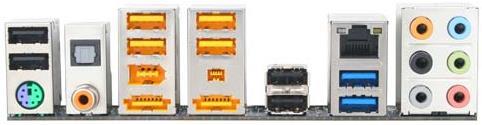

1 x PS/2 keyboard ή PS/2 mouse port, 1 x coaxial S/PDIF Out connector, 1 x optical S/PDIF Out connector, 2 x IEEE 1394a ports, 8 x USB 2.0/1.1 ports, 2 x USB 3.0 ports, 2 x eSATA 3Gb/s ports, 1 x RJ-45 port, 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone).

3 x PCI Express x1 slots, 2 x PCI slots, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x floppy disk drive connector, 1 x CPU fan header, 2 x system fan headers, 1 x power fan header, 1 x PCH chip fan header, 1 x front panel header, 1 x front panel audio header, 1 x CD In connector, 1 x S/PDIF In header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 1 x IEEE 1394a header, 1 x serial port header, 1 x parallel port header, 1 x clearing CMOS jumper.

3 χρόνια
