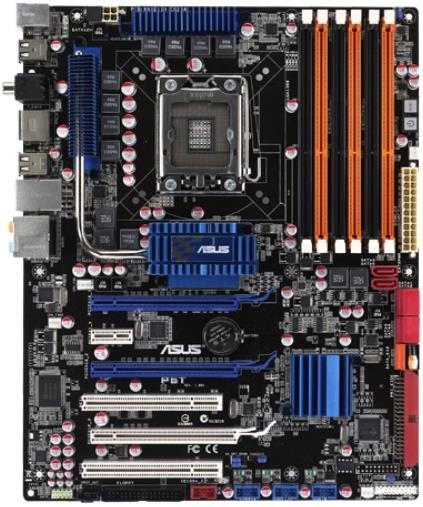

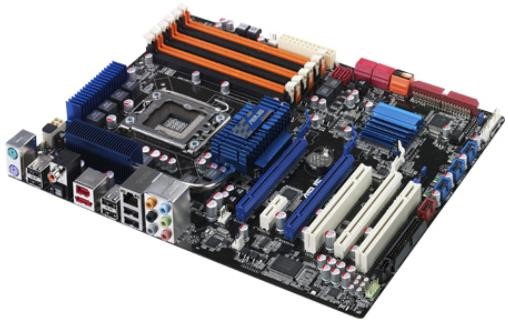

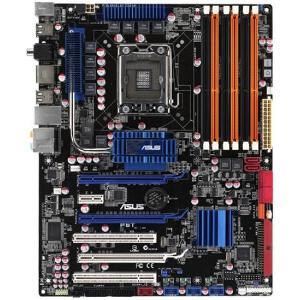

ASUS P6T

ATX με διαστάσεις 30.5 x 24.4cm.

Socket 1366.

Core i7 Processor Extreme Edition/Core i7 Processor.Συμβατοί επεξεργαστές

Intel X58 / ICH10R.

Εως 6400 MT/s.

6 x DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 με δυνατότητα επέκτασης έως 24GB (triple channel, 240-pin). Υποστήριξη Intel Extreme Memory Profile (XMP).Συμβατές Μνήμες

3 x PCIe 2.0 x16 (x16/x16/x4 mode). Υποστήριξη NVIDIA 3-Way SLI Technology, Υποστήριξη ATI Quad-GPU CrossFireX Technology.

Southbridge: 6 x SATA 3 Gb/s ports (RAID 0, 1, 5, 10).
JMicron JMB322 (Drive Xpert technology): 2 x SATA 3Gb/s.
JMicron JMB363: 1 x UltraDMA 133/100/66 (δυνατότητα σύνδεσης 2 συσκευών IDE), 1 x External SATA port.

1 x External SATA, 2 x S/PDIF Out (1xCoaxial & 1xOptical), 1 x IEEE 1394a, 1 x LAN(RJ45) port, 6 x USB 2.0/1.1, 8-Channel Audio I/O, 1 x PS/2 Keyboard (Purple), 1 x PS/2 mouse port (Green).

1 x PCIe x1, 2 x PCI, 3 x USB connectors (υποστήριξη 6 USB 2.0 ports), 1 x Floppy disk drive connector, 1 x IEEE 1394a connector, 1 x CPU Fan connector, 2 x Chassis Fan connector, 1 x Power Fan connector, 2 x Drive Xpert SATA connectors (orange και white), 1 x S/PDIF Out connector, 1 x 8-pin ATX 12V Power connector, 24-pin ATX Power connector, CD audio in, Front panel audio connector, Chassis Intrusion connector, System Panel (Q-Connector), 1 x Power on switch, 1 x Reset switch.

Ενσωματωμένη κάρτα δικτύου: Realtek 8111C PCIe Gigabit LAN controller (10/100/1000 Mbit/s).
Ενσωματωμένη κάρτα ήχου: Realtek ALC1200 8-Channel High Definition Audio CODEC.
Ενσωματωμένος firewire controller: VIA VT6315N controller.

ASUS Drive Xpert, ASUS EPU, ASUS 8+2 Phase Power Design.

Retail.

3 χρόνια.
