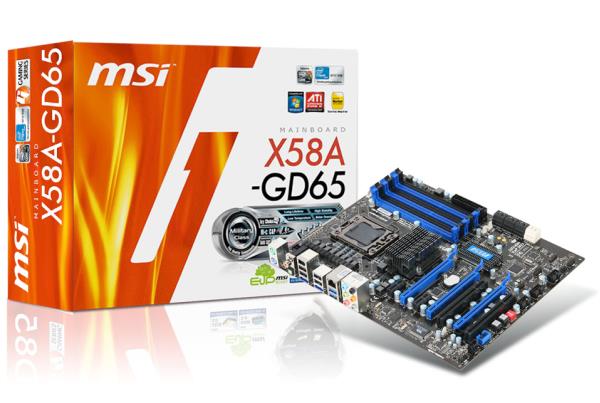

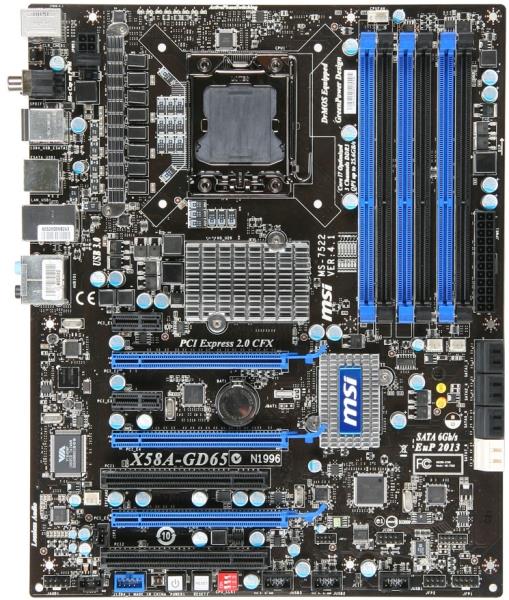

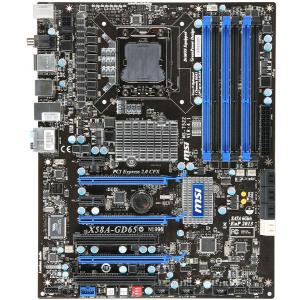

MSI X58A-GD65

ATX με διαστάσεις 30.5 x 24.4 cm.

Socket 1366.

Intel Core i7. Συμβατοί επεξεργαστές

Northbridge: Intel X58, Southbridge: Intel ICH10R.

6.4GT/s.

6 x DDR3 800/1066/1333/1600*/1800*/2133* (OC) έως 24GB (triple channel), (σε συστήματα Windows XP και Vista 32-bit η διαθέσιμη μνήμη ενδέχεται να είναι μικρότερη των 4GB λόγω περιορισμού του chipset, σε Windows XP και Vista 64-bit δεν υπάρχει κάποια δέσμευση).

2 x PCI Express x16 slots, 1 x PCI Express x4 slot.

6 x Serial ATAII connectors, 2 x Serial ATAIII connectors.

1 x PS/2 Keyboard port, 1 x PS/2 Mouse port, 1 x Clear CMOS button, 1 x Coaxial SPDIF-out, 1 x Optical SPDIF-out, 1 x IEEE1394 port, 4 x USB 2.0 ports, 2 x USB 3.0 ports, 2 x eSATA ports, 1 x RJ45 LAN Jack, 1 x 6 in 1 audio jack.

ATX 24-Pin power connector, 8-pin ATX 12V power connector, CPU x 1 / System x 3 FAN connectors, CD-in connector, Front panel audio connector, Front panel connector, 1 x chasis intrusion connector, 1 x serial port pinheader, 3 x USB 2.0 connectors, 6 x Serial ATAII connectors, 2 x Serial ATAIII connectors, 1 x IEEE1394 connector support additional 1 port, 1 x Reset Button, 1 x Power Button, 1 x Overclock Switch, 1 x Clear CMOS jumper, 1 x SPDIF-out connector, 1 x TPM module connector.

Ενσωματωμένη κάρτα δικτύου: 10/100/1000 Fast Ethernet by Realtek 8111DL. Ενσωματωμένη κάρτα ήχου: Realtek ALC892 Audio Codec 8CH. Ενσωματωμένo Firewire: VIA VT6308 chipset.

Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit.

3 χρόνια.
