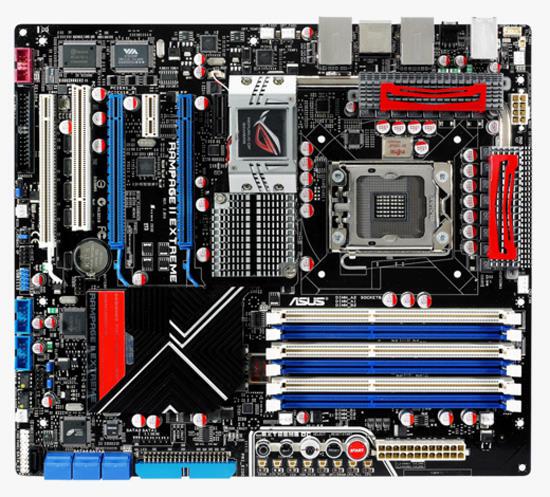

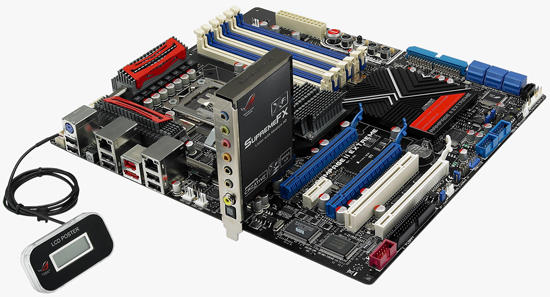

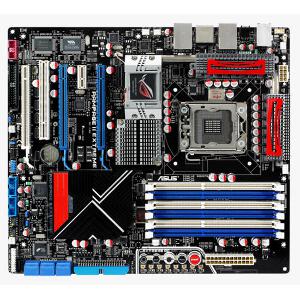

ASUS RAMPAGE 2 EXTREME

ATX με διαστάσεις 30.5 x 26.9cm.

Socket 1366.

Core i7 Processor Extreme Edition/Core i7 Processor. Συμβατοί Επεξεργαστές

Εως 6400 MT/s.

Intel X58 / ICH10R.

3 x PCIe 2.0 x16 (x16, x8, x8 ή dual x16 speed). Υποστήριξη NVIDIA 3-Way SLI / ATI CrossFireX Technology.

6 x DDR3 1800(O.C.)/1600(O.C.)/1333/1066 με δυνατότητα επέκτασης έως 12GB (triple channel, 240-pin). Υποστήριξη Intel Extreme Memory Profile (XMP).

Intel ICH10R controller: 6 xSATA 3 Gb/s ports (RAID 0, 1, 5, 10).
JMicron JMB363 controller: 1 x UltraDMA 133/100/66/33 (δυνατότητα σύνδεσης 2 συσκευών IDE), 1 x External SATA port, 1 x SATA 3.0 Gb/s port.

1 x PS/2 Keyboard port (purple), 1 x External SATA port, 2 x LAN (RJ45) port, 6 x USB 2.0/1.1 ports, 1 x IEEE1394a port, 1 x Clr CMOS switch.

2 x PCIe 2.0 x 1 (η PCIEx1_1 (black) είναι συμβατή με audio slot), 1 x PCI 2.2, 3 x USB connectors (υποστήριξη 6 USB 2.0 ports), 1 x Floppy disk drive connector, 1 x IEEE 1394a connector, 1 x Chassis Fan connector, 1 x 8-pin ATX 12V Power connector, 24-pin ATX Power connector, 1 x EL I/O Shield Connector, 3 x thermal sensor connector, 1 x En/Dis-able Clr CMOS connector, System Panel, 8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional, 8 x ProbeIt connectors, 1 x LCD Poster connector, 1 x BIOS FlashBack boot up selection header, 1 x ROG light connector.

Ενσωματωμένη κάρτα δικτύου: Dual Gigabit LAN controllers (10/100/1000 Mbit/s).
Ενσωματωμένη κάρτα ήχου: SupremeFX X-Fi Audio Card ADI AD2000B 8-Channel High Definition Audio CODEC.
Ενσωματωμένος firewire controller: 1394a controller.

TweakIt, ProbeIt, Extreme Engine με ML Cap Design.

Retail.

3 χρόνια.
