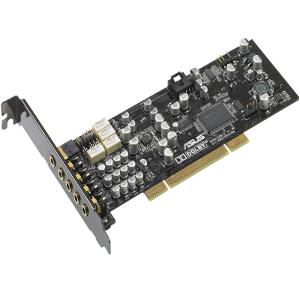

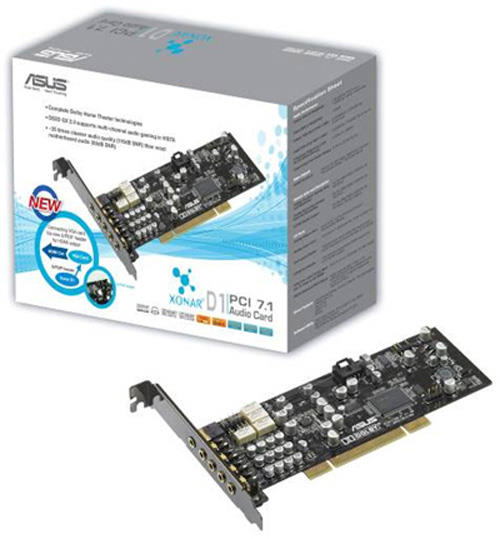

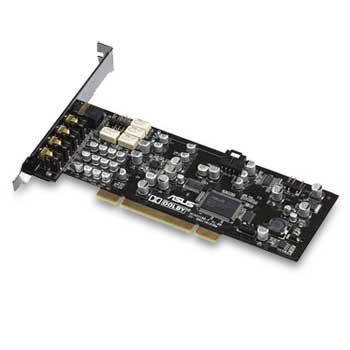

ASUS XONAR D1

ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit).

Output Signal-to-Noise Ratio (A-Weighted): 116dB for front-out, 112dB for other channels dB. Input Signal-to-Noise Ratio (A-Weighted): 112 dB. Output THD+N at 1kHz: 0.00056% (-105dB) for Front-out. Input THD+N at 1kHz: 0.0004% (-108dB) for Line-in. Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 48KHz. Output/Input Full-Scale Voltage: 2 Vrms (5.65 Vp-p). 24-bit D-A Converter of Digital Sources: Cirrus-Logic CS4398*1 for Front-Out (120dB SNR, Max. 192kHz/24bit), Cirrus-Logic CS4362A*1 for other 6 channels (114dB SNR, Max. 192kHz/24bit. 24-bit A-D Converter for Analog Inputs: Cirrus-Logic CS5361* 1 (114dB SNR, Max. 192kHz/24bit. Analog Playback Sample Rate and Resolution: 4.1K/48K/96K/192KHz @ 16/24bit. Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit. S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS. S/PDIF Digital Input: 44.1K/48K/96K/192KHz @ 16/24bit. SIO 2.0 Driver Support: Supports 44.1K/48K/96K/192KHz @16/24bit with very low latency.

Analog Output Jack: 3.50mm mini jack x4 (Front/Side/Center-Subwoofer/Back). Analog Input Jack: 3.50mm mini jack (Shared by Line-In/Mic-In). Other line-level analog input (for CD-IN/TV Tuner): Aux-In (4-pin header on the card). Digital S/PDIF Output: High-bandwidth TOS-Link optical transmitter (shared with Line-In/Mic-In jack) supports 192KHz/24bit. S/PDIF Header: Connecting to supported VGA cards with HDMI output.

Smart Volume Normalizer, Xear 3D Virtual Speaker Shifter, Magic Voice, Karaoke Functions, FlexBass, 3D Sound Engines/APIs, DS3D GX2.0, RightMark Audio Analyzer 6.0.6.

Intel Pentium 4 1.4GHz/AMD Athlon 1400 CPU ή καλύτερο, 256 MB DRAM, 60 MB χώρο στον σκληρό δίσκο.

Windows Vista(32/64bit)/XP(32/64bit)/MCE2005.

PCI.

Retail.

1 χρόνος.
